HES7DB-SoC System-on-Chip Daughter Card

Product Description

HES7DB-SoCドーターカードは、Xilinx Zynq-7000プログラマブルデバイスでARM Cortex A9デュアルコアCPUを提供して、HESボードの機能拡張を行う様に設計されています。さらに、SoCデザインで一般的に使用されるUSB、イーサネット、Wi-Fi、HDMIなどの周辺機器も含まれています。HES7DB-SoCボードの典型的な3つの使用例は以下のとおりです:

  1. インサーキット・エミュレーションと物理プロトタイプ用のペリフェラル・ボード
  2. ZynqモジュールのARM Cortex A9のSoCプロセッササブシステムモデルとHESメインボードでエミュレートされる残りのSoCをAXIインターコネクトIPを介して接続します
  3. ZynqモジュールのARM Cortex A9がAXIインターコネクトIPを介してHESボードでエミュレートされるテスト対象のデザインをドライブするテストベンチアプリケーションを実行するテストベンチホストを設計します

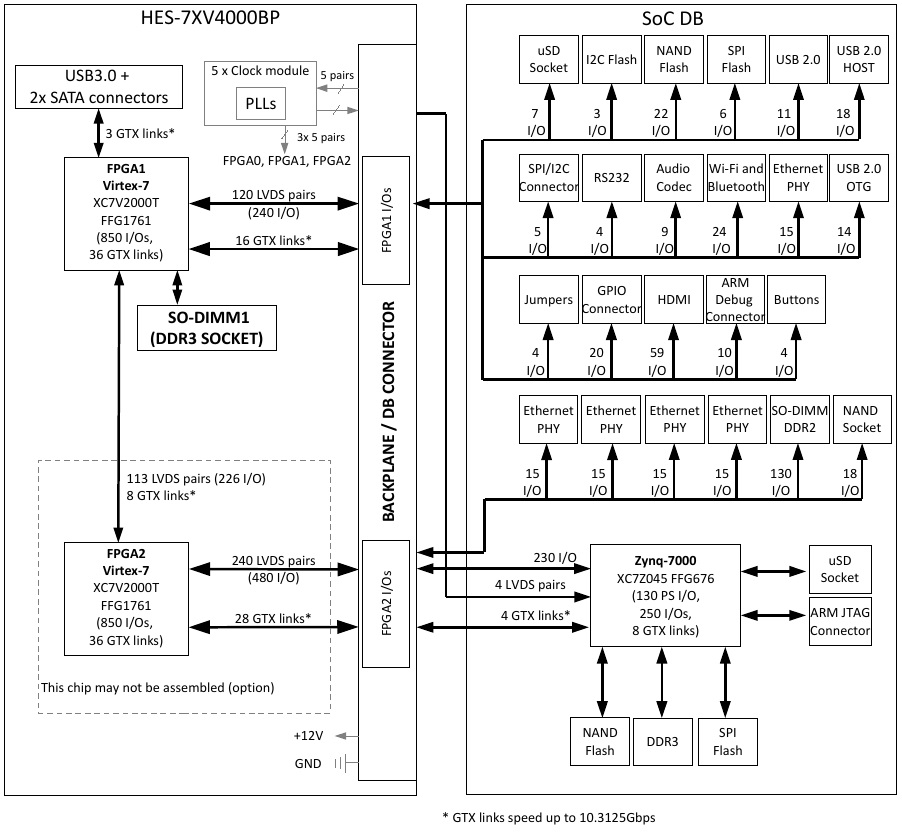

The following block diagram shows the HES7DB-SoC daughter card connected with the HES7XV4000BPX. Configurations containing other HES boards with BPX backplane connectors are also available.

BLOCK DIAGRAM

Essential Features

Xilinx Zynq-7000 & ARM Subsystem

  • Xilinx Zynq-7000 module ( XC7Z045-FFG676), dual core ARM Cortex A9 MPCore
  • 128MB of DDR3 (4x MT41J256M8HX-15E)
  • 4Gb of NAND Flash (MT29F4G08ABBDAH)
  • 64Mb of SPI Flash (W25Q64DW)
  • Micro-SD Card socket (up to 16GB Micro-SD cards supported)
  • ARM JTAG 20 pin connector

Components & Interfaces

  • 5x Gigabit Ethernet PHY (88E1116R)
  • Wi-Fi/Bluetooth module (WL1271)
  • USB 2.0 OTG (TUSB6020)
  • USB 2.0 Device (FT2232H)
  • USB 2.0 Host (FT311D) targeted at bridging external non USB devices to Android controlled portable devices.
  • HDMI 1.4 Out - 225 MHz High Performance Transmitter (ADV7511)
  • RS232 transceiver
  • Stereo audio codec (SGTL5000XNAA3)

Memories

  • DDR2 SO-DIMM
  • SPI Flash (W25Q64DW)
  • I2C Flash (4x M24M01)
  • NAND Flash (MT29F4G08ABBDAH) and socket for additional module
  • SD Card slot

Clocking

  • 2x oscillators 100 MHz, 200 MHz
  • 1x clock for SATA (150 MHz)

Connectivity

  • Full size BPX main board connector:
    • High speed (25 Gbps) connectors: MOLEX 76560 series (mates with 76150 series)
  • HDMI receptacle
  • USB 2.0 Standard A, B, Mini-B receptacles
  • 5x RJ45 ethernet receptacles
  • External I2C & SPI connector (10 pin)
  • 2x DB-9 connectors for RS232
  • GPIO connector (40 pin / 20 GPIO)
  • ARM debug connector - Cortex Debug+ETM
  • Analog audio Line-IN, Line-OUT connectors
