ACT-H3Ki-CQ256

Product Description

Top view

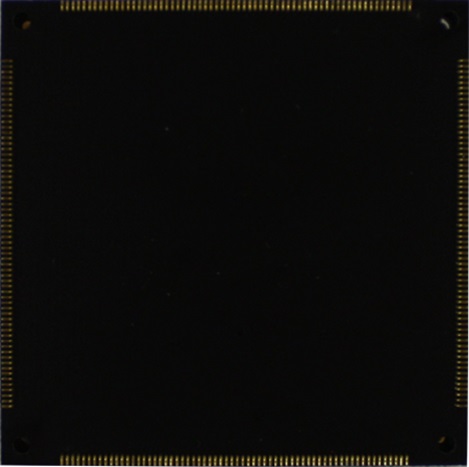

Bottom view

The ACT-H3Ki-CQ256 adaptor board was designed to support the designs targeting Microchip’s RTAX2000S/SL devices. The compact size and compatible footprint allows to assembly the adapter board directly in RTAX’s place without any additional changes on the target board.

Key Features:

  • Supported FPGA's:
    • RTAX2000S-CQ256
    • RTAX2000SL-CQ256
  • On board FPGA: A3PE3000-2FG484i
  • Capacity: 3 000 000 System Gates
  • Adaptor size: 43.07mm x 43.07mm
  • On board JTAG connector
  • Netlist Converter Support
