Product Description

The ACT-H3K-CG624 adaptor board was designed to support the RTAX devices in CG624 package. With the A3PE3000 chip on board the adaptor meets the capacity requirements for RTAX-S/SL up to 2000S. The BGA balls on bottom side mimic the footprint of the CG624 package what allow to assembly the adaptor directly on target board in RTAX chip’s place.

Key Features:

  • Supported FPGA's:
    • RTAX250S/SL-CG624
    • RTAX1000S/SL-CG624
    • RTAX2000S/SL-CG624

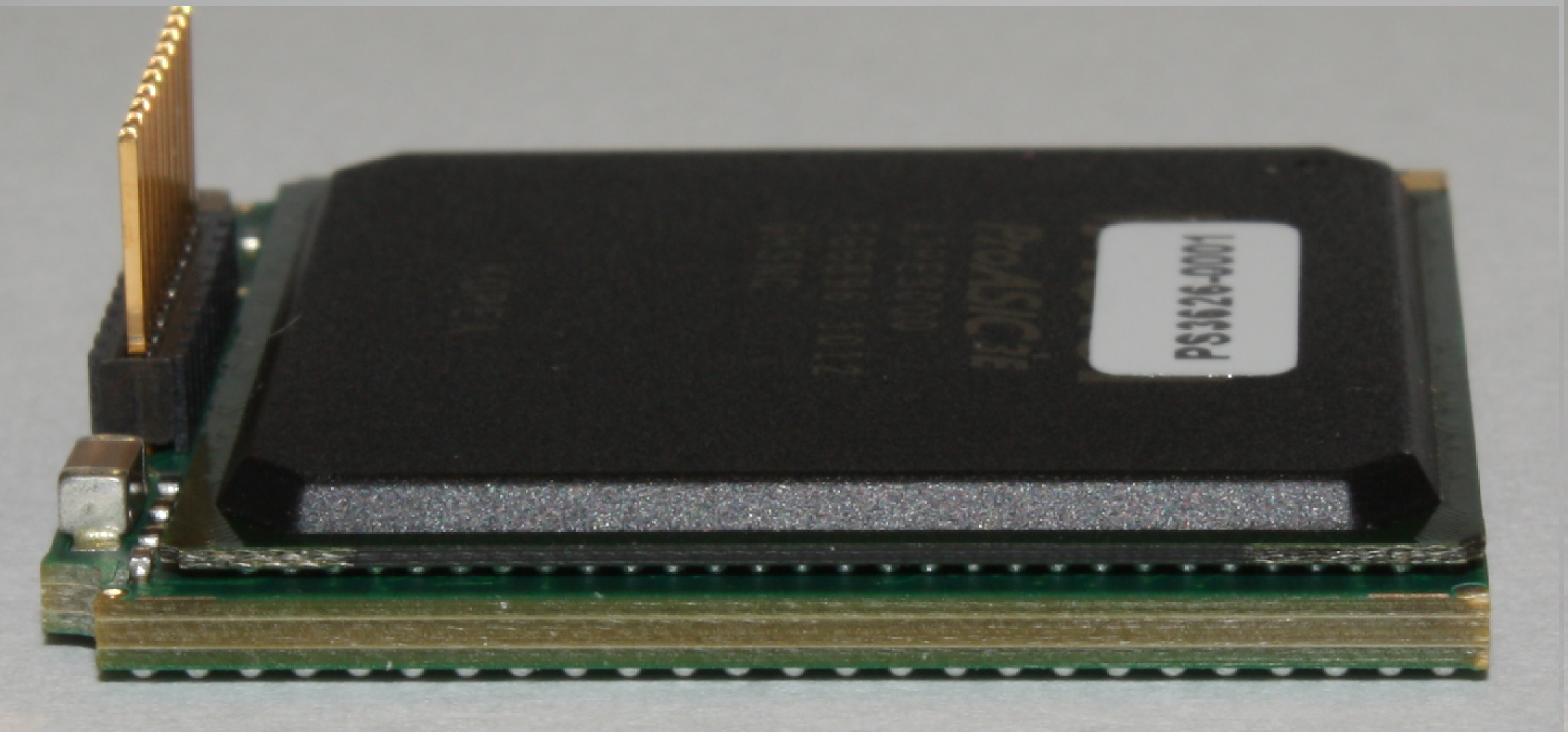

  • On board FPGA: A3PE3000-2FG896i

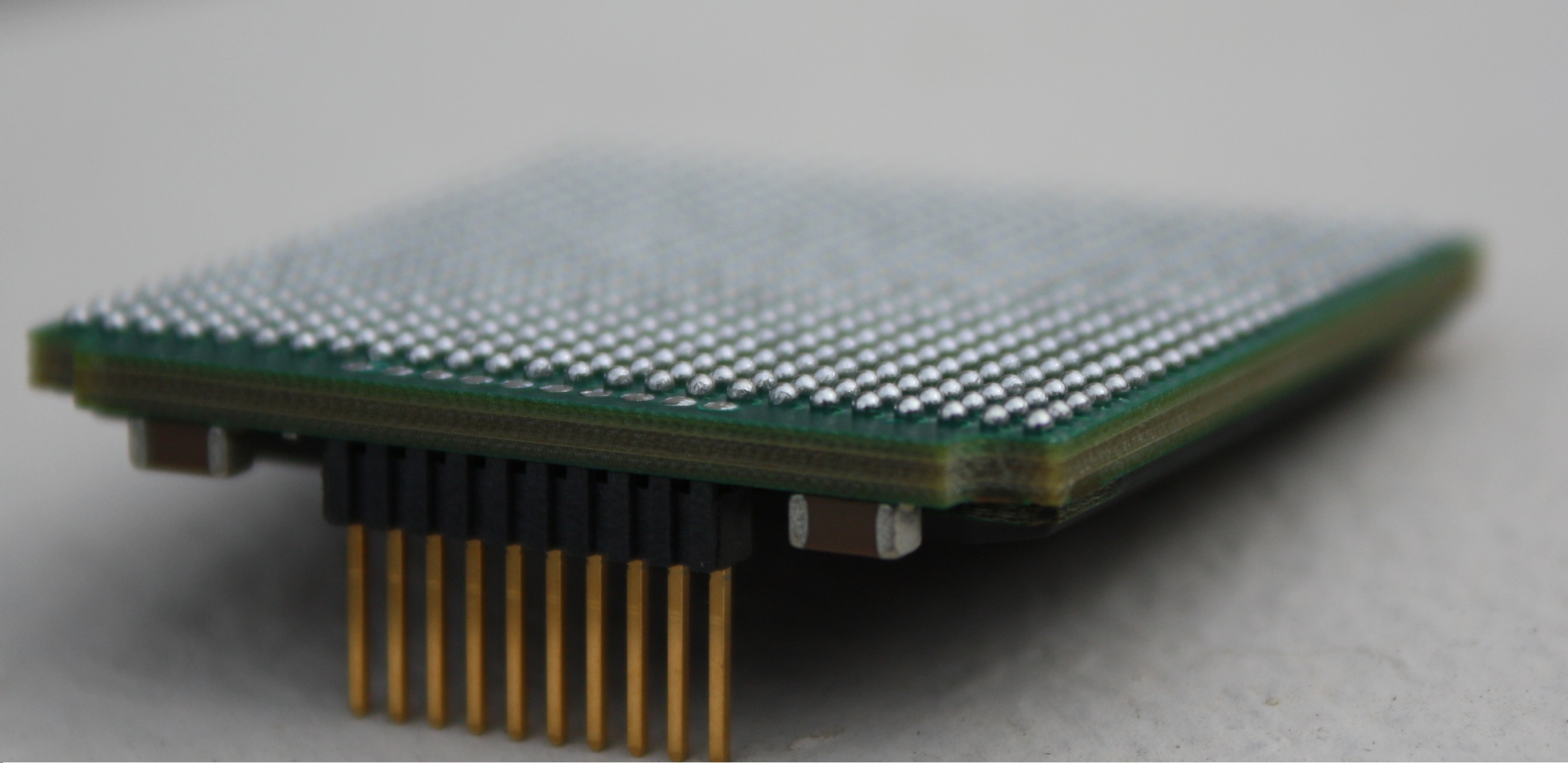

  • BGA balls on bottom side that mimic RTAX's CG624 package
  • Capacity: 3 000 000 System Gates
  • Adaptor size: 32.5mm x 34mm
  • On board JTAG connector
  • Supplied directly from target board via BGA balls
  • Netlist Converter Support
