FMC-VISION Multimedia Daughter Card

Product Description

FMC-VISION card provides a set of multimedia interfaces for display panels, monitors, and cameras which are widespread across different kinds of designs like embedded vision, graphic & video processors, HDTV, projectors, cameras and the like. There is also an audio-codec and USB 3.0 host controller on this daughter card that make it well-fitted for physical prototyping of all kinds of multimedia designs.

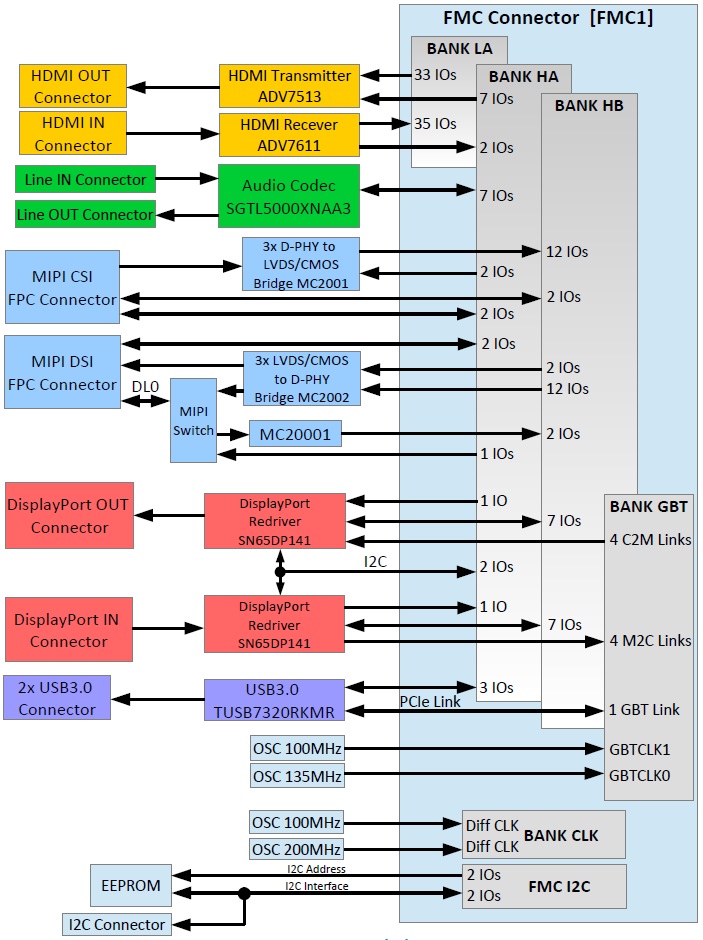

BLOCK DIAGRAM

Essential Features

Components & Interfaces

  • HDMI 1.4 interfaces
    • HDMI IN with Low Power 165 MHz HDMI Receiver ADV7611
    • HDMI OUT with High Performance 165 MHz Transmitter ADV7513
  • DisplayPort interfaces
    • DisplayPort IN 4x channels with Linear Redriver SN65DP141
    • Display Port OUT 4x channels with Linear Redriver SN65DP141
  • MIPI interfaces
    • MIPI CSI 2x D-lanes with D-PHY to FPGA LVDS bridge MC20001
    • MIPI DSI 2x D-lanes with FPGA LVDS to D-PHY bridge MC20002
  • USB3.0/PCIe Host Controller to PCIe bridge
    • Based on Texas Instruments TUSB7320RKMR xHCI Host Controller
    • PCIe x1 Gen2 Interface to host system
    • 2x USB 3.0 downstream ports
  • Audio codec
    • Stereo audio codec SGTL5000XNAA3

Memory

  • 64 kB EEPROM (to accomplish ANSI/VITA 57.1 FMC standard)

Clocking

  • 2x oscillators 100 MHz, 200 MHz
  • 1x clock for SATA (150 MHz)

Connectivity

  • Main board connector:
    • FPGA Mezzanine Card connector compliant with ANSI/VITA 57.1 FMC Standard
  • HDMI receptacles
  • DisplayPort standard receptacles
  • MIPI CSI/DSI - FPC connectors
  • Dual USB3.0 Standard-A receptacle
  • External I2C connector
  • Analog audio Line-IN, Line-OUT connectors
