HES7DB-FMC Connectivity Adapter Card

Product Description

HES7DB-FMC is an adapter daughter card from BPX to FMC connectors. Additionally it provides two QSFP+ connectors for high speed serial links used in optical/fiber communication.

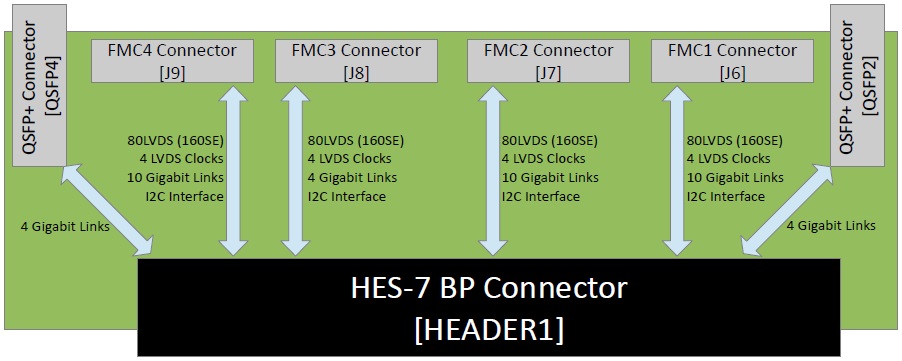

BLOCK DIAGRAM

Essential Features

Connectivity & Interfaces

  • Full size BPX main board connector:
    • High speed (25 Gbps) connectors: MOLEX 76560 series (mates with 76150 series)
  • Daughter card connectors (FMC-HPC) - standard FPGA Mezzanine Card connectors compliant with ANSI/VITA 57.1 FMC
    • 4x FMC-HPC sockets connected BPX I/O
    • Each FMC socket connects:
      • 160 SE / 80 LVDS
      • 10 or 4 lanes of Gigabit serial links
      • 4 LVDS clocks
      • I2C interface
      • JTAG ports
  • 2x QSFP+ connectors with 4x gigabit links in each

Clocking

  • 2x clock oscillators 156.25 MHz as GTX reference clocks dedicated to QSFP+
