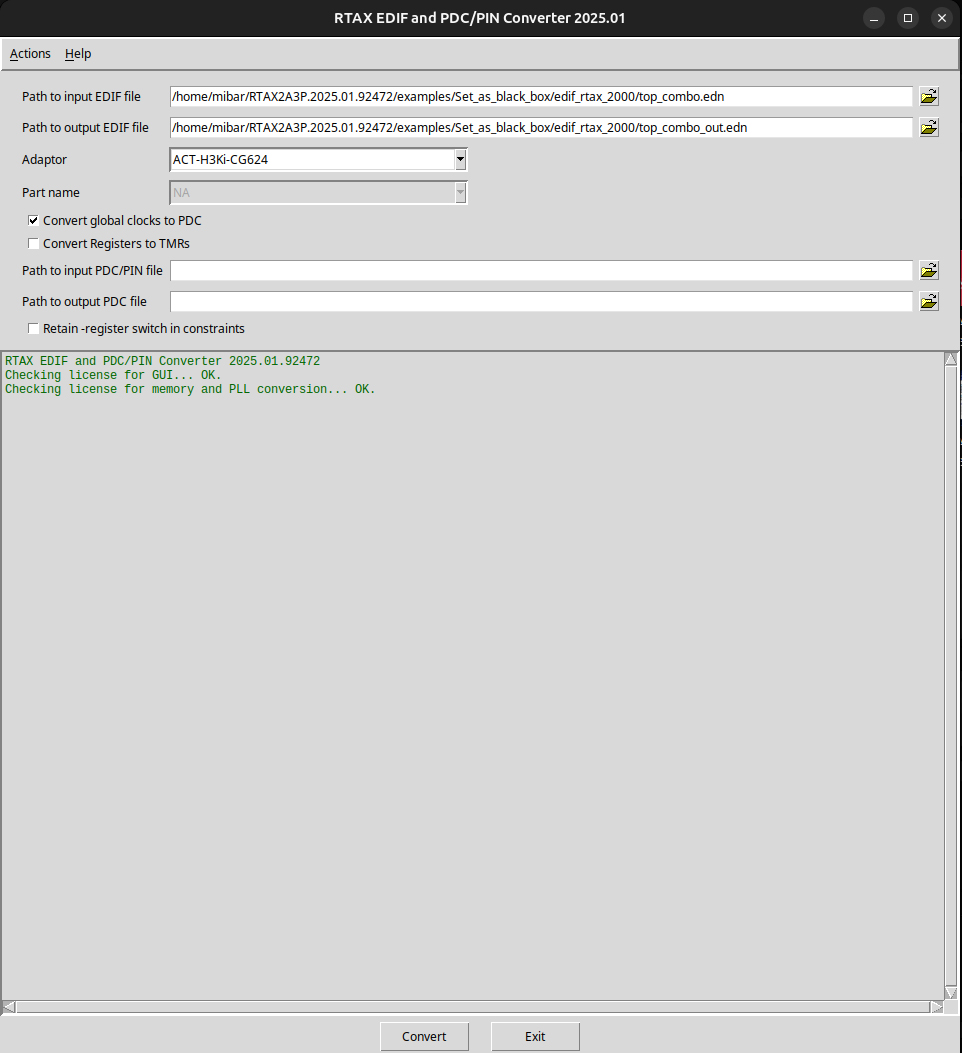

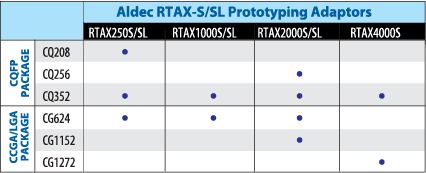

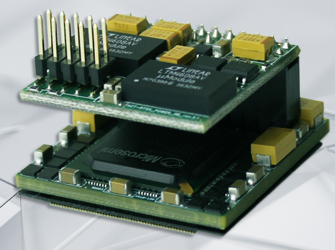

Aldec and Microchip have joined together, offering a new, innovative, reprogrammable prototyping solution for Microchip RTAX-S/SL, RTSX-SU, and RTAX-D space-flight system designs. Unlike the traditional OTP (One Time Programmable) anti-fuse space-qualified FPGAs, the Aldec prototype adaptor uses flash-based, Microchip ProASIC®3E FPGA technology, for design prototype re-programmability. Top Features Supported Microchip devices/capacities: RTAX-S/SL up to 4000S, RTSX-SU, and RTAX-D devices Automated Device Netlist Converter: Memory Conversion Physical Design Constraint (PDC) file conversion Compatible with Linux and Windows OS Simulation capability with Riviera-PRO Microchip ProASIC®3E FPGA Technology Using ProASIC3E FPGA flash-based programming technology instead of traditional OTP anti-fuse space-qualified FPGAs (AX chips) provides significant advantages, such as a smaller device size with greater routing flexibility, more switches, lower power consumption, non-volatile re-programmability with easier technology mapping and Netlist optimizations. The Microchip ProASIC3E FPGA family supports devices from 15,000 to 3 million ASIC gates and includes 504Kbits of true dual-port SRAM, 620 user I/Os, 1KB of flash-ROM and provides secure IP 128-bit AES encryption/decryption. Aldec Re-Programmable Prototyping Adaptors The Aldec prototyping adaptor board maps the footprint of the Microchip ProASIC3E FPGA device to the footprint of the Microchip RTAX-S/SL or RTSX-SU device (e.g. CQ208, CQ256, CQ352, CG624, CG1152 or CG1272). After soldering the adaptor to the PCB, a programming connector (JTAG) provides on-the-fly reprogramming of the device, without detaching the adaptor from the target PCB. In addition, a GUI-based EDIF Netlist Converter Application, is available for automatic pin re-mapping from anti-fuse to flash-based architecture. Aldec prototyping adaptors are available today, in a wide-variety of supported device capacities and packages. RTAX-S/SL Prototyping Adaptors Description Microchip ProASIC3E device JTAG connector CQ208 footprint Size: 37mm x 37mm Learn More Description Microchip ProASIC3E device JTAG connector CQ256 footprint Size: 43.07mm x 43.07mm Learn More Description Microchip ProASIC3E device Commercial or Industrial JTAG connector Power connector CQ352 footprint Size: 55mm x 55mm Learn More Description Microchip ProASIC3E device Commercial or Industrial JTAG connector CG624 footprint Size: 32.5mm x 34mm Learn More Description Stacked MB/DB with: Microchip ProASIC3E device JTAG connector CQ352 footprint Size: 55mm x 55mm Learn More Description Microchip RTG4 or Polarfire device DSP 462 / DSP 1480 JTAG connector CQ352 footprint Size: 55mm x 55mm Ask For More RTSX-SU Prototyping Adaptors Description Microchip ProASIC3E device JTAG connector CQ208 footprint Size: 37mm x 37mm Learn More Description Microchip ProASIC3E device JTAG connector CQ256 footprint Size: 43.07mm x 43.07mm Learn More EDIF Netlist Converter The RTAX EDIF Netlist Converter, an optional application, performs automatic conversion of the RTAX-S/SL and RTSX-SU EDIF netlist to a ProASIC3E netlist, taking into consideration the differences between RTAX-S/SL or RTSX-SU anti-fuse and ProASIC3E flash-based technologies. A pin re-mapping utility provides automatic Physical Design Constraint (PDC) file conversion, which eliminates the need for additional, time consuming manual work. New Solutions Custom Adaptor: RTG4 / RTPolarFire Custom eval boards for Adaptors 3D printed RT Covers MX Chips support: A42MX32 RTAX/RTSX Adaptor Boards Inquiry First name* Last name* Organization* Country* Select CountryAfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBosnia and HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBrunei DarussalamBulgariaBurkina FasoBurundiCambodiaCameroonCanadaCape VerdeCayman IslandsCentral African RepublicChadChileChinaChristmas IslandCocos (Keeling) IslandsColombiaComorosCongoCongo, The Democratic Republic of theCook IslandsCosta RicaCote D'IvoireCroatiaCubaCyprusCzech RepublicDenmarkDjiboutiDominicaDominican RepublicEast TimorEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEthiopiaEuropeFalkland Islands (Malvinas)Faroe IslandsFijiFinlandFranceFrance, MetropolitanFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuineaGuinea-BissauGuyanaHaitiHeard Island and McDonald IslandsHoly See (Vatican City State)HondurasHong KongHungaryIcelandIndiaIndonesiaIran, Islamic Republic ofIraqIrelandIsraelItalyJamaicaJapanJordanKazakstanKenyaKiribatiKorea, Democratic People's Republic ofKorea, Republic ofKuwaitKyrgyzstanLao People's Democratic RepublicLatviaLebanonLesothoLiberiaLibyan Arab JamahiriyaLiechtensteinLithuaniaLuxembourgMacauMacedonia, the Former Yugoslav Republic ofMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesia, Federated States ofMoldova, Republic ofMonacoMongoliaMontserratMoroccoMozambiqueMyanmarNamibiaNauruNepalNetherlandsNetherlands AntillesNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorthern Mariana IslandsNorwayOmanPakistanPalauPalestinian Territory, OccupiedPanamaPapua New GuineaParaguayPeruPhilippinesPitcairnPolandPortugalPuerto RicoQatarReunionRomaniaRussian FederationRwandaSaint HelenaSaint Kitts and NevisSaint LuciaSaint Pierre and MiquelonSaint Vincent and the GrenadinesSamoaSan MarinoSao Tome and PrincipeSaudi ArabiaSenegalSeychellesSierra LeoneSingaporeSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia and the South Sandwich IslandsSpainSri LankaSudanSurinameSvalbard and Jan MayenSwazilandSwedenSwitzerlandSyrian Arab RepublicTaiwanTajikistanTanzania, United Republic ofThailandTogoTokelauTongaTrinidad and TobagoTunisiaTurkeyTurkmenistanTurks and Caicos IslandsTuvaluUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUnited States Minor Outlying IslandsUruguayUzbekistanVanuatuVenezuelaVietnamVirgin Islands, BritishVirgin Islands, U.S.Wallis and FutunaWestern SaharaYemenYugoslaviaZaireZambiaZimbabwe Phone Number* Email* Platform MAC Address I accept the Terms Security Code*
