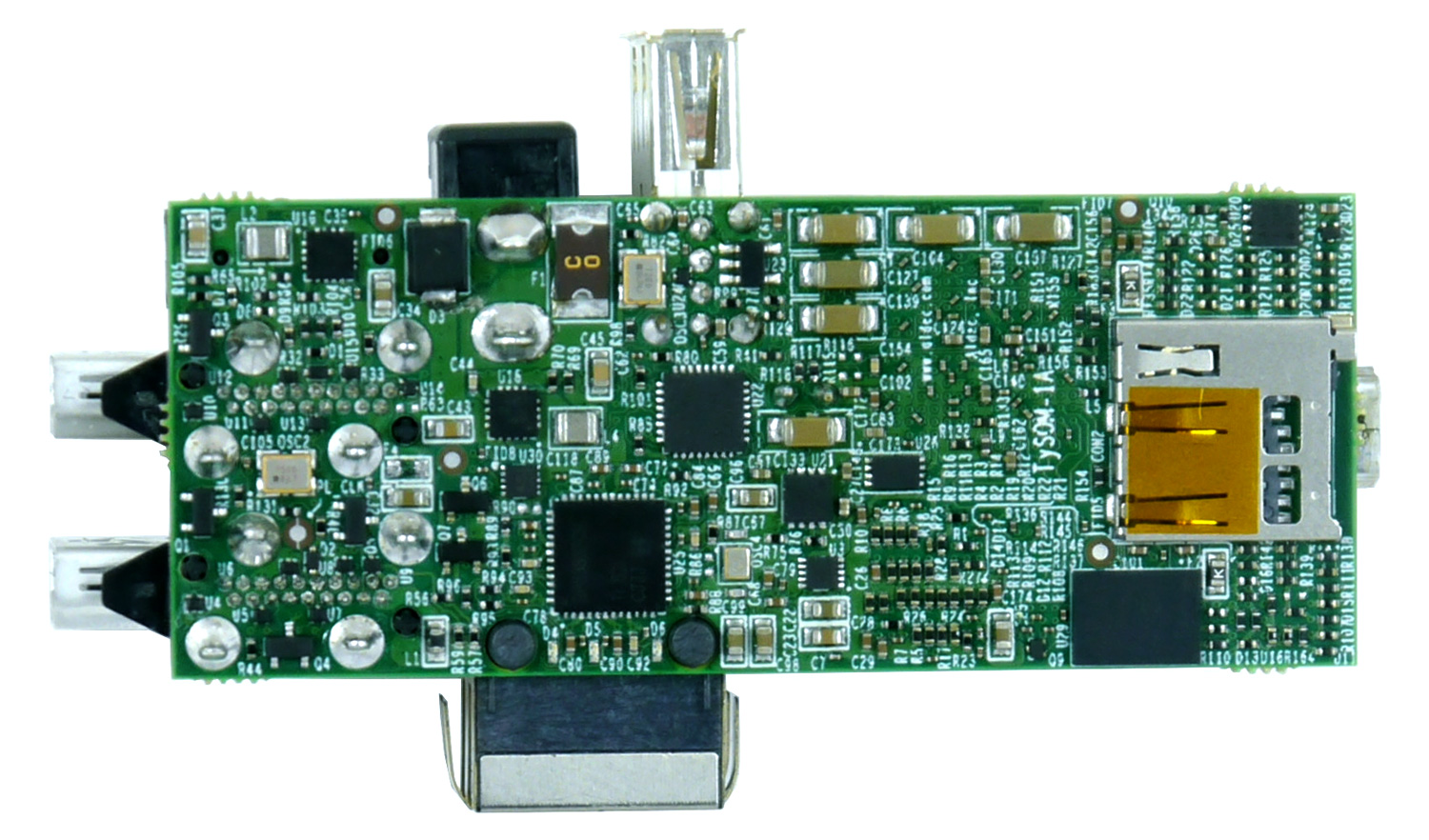

TySOM-1A-7Z010 Embedded Prototyping Board

TySOM-1A-7Z010 is a compact board containing Xilinx Zynq-XC7Z010 All Programmable device with dual-core ARM Cortex A9 and a selection of peripherals to provide a complete prototyping platform for embedded system designs and IoT applications. As a single board computer, it is equipped with 512 MB of RAM (DDR3) and Micro-SD card socket for application storage up to 32GB, USB OTG, Digilent Pmod and Gigabit Ethernet for communication and HDMI IN/Out for media. Such a configuration allows booting up embedded Linux Operating System or another Real Time Operating System (RTOS) and developing embedded software early in a fully equipped hardware environment. The FPGA part of the Zynq-7000 module allows designing custom algorithm accelerators and coprocessors or integrate custom controllers for other on-board peripherals such as Accelerometer, CMOS Camera or broad range of of-the-shelf Digilent PMOD modules.

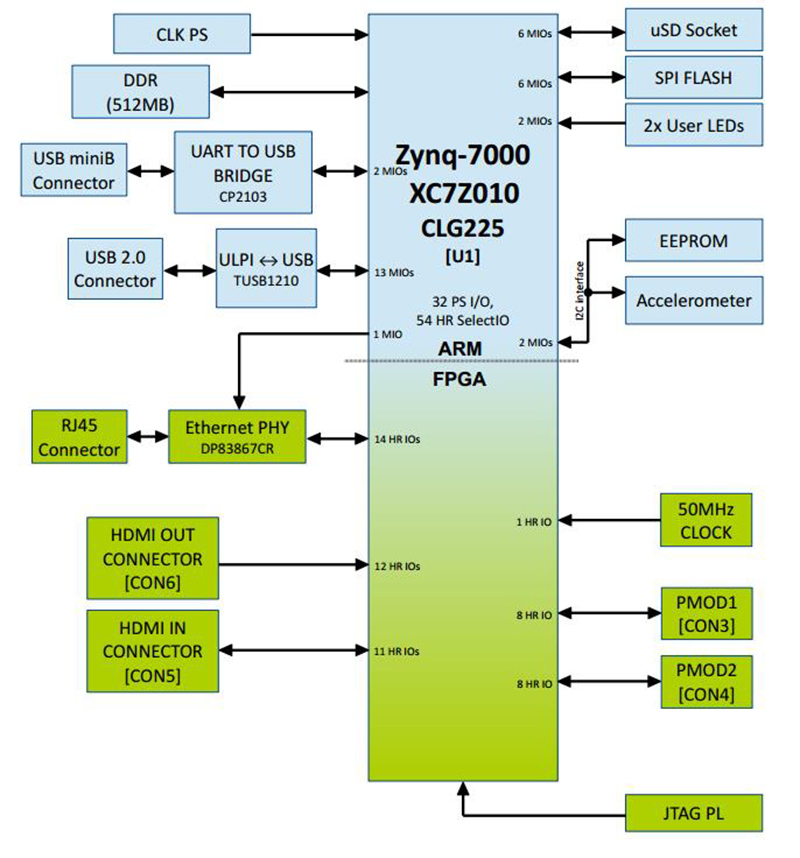

zynq board cheap BLOCK DIAGRAM

TySOM-1A-7Z010 Embedded Prototyping Board

Chipset / SoC

  • Xilinx Zynq-7000 XC7Z010
  • Dual ARM Cortex-A9 MPCore
  • XADC - 12-bit dual core, 1MSPS Analog to Digital converter
  • FPGA: Artix-7 architecture
    • 28K Logic Cells, 35K Flip-Flops, 2.1Mb RAM, 80 DSP


  • 512 MB RAM - DDR3
  • Micro-SD support up to 32GB
  • 128Mb SPI Flash Memory
  • 64 Kb EEPROM


  • Gigabit Ethernet PHY with RGMII interface (88E1116R)
  • 1x USB 2.0 OTG
  • 1x USB-to-UART port
  • 1x JTAG Header Xilinx JTAG Connector for Zynq PL
  • 2x Digilent PMOD Compatible Header


  • HDMI 1.4 IN
  • HDMI 1.4 OUT


  • 2x User LEDs
  • Reset Pushbuttons for PL & PS
  • Accelerometer
  • XADC Connector


  • 30 mm x 75 mm
