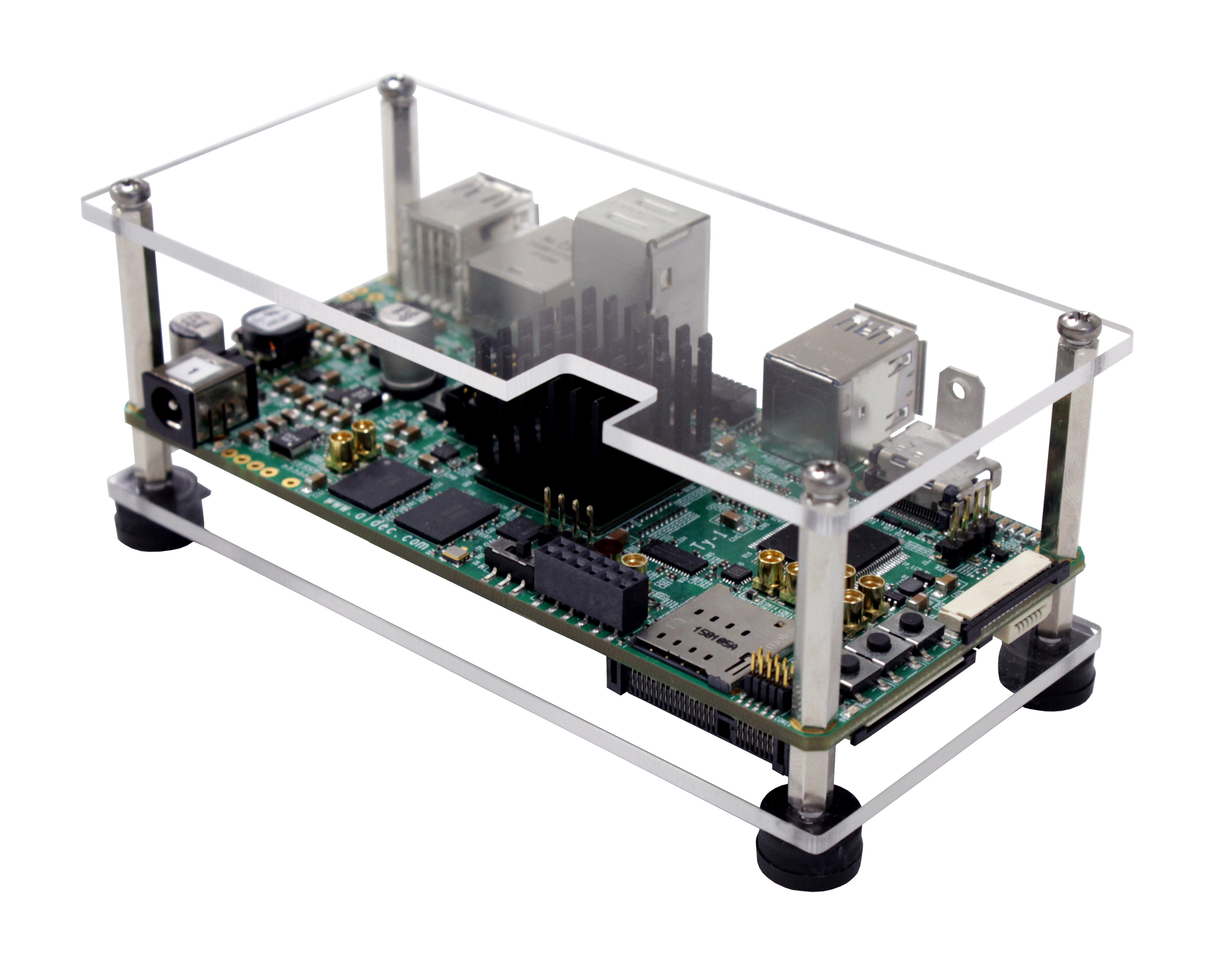

TySOM-1-7Z030 Embedded Prototyping Board

TySOM-1-7Z030 is a compact board containing medium size Xilinx Zynq-7000 All Programmable FPGA with dual-core ARM Cortex A9 and rich selection of peripherals to provide a complete and universal physical prototyping platform for a broad range of embedded designs and IoT applications. As a single board computer it is equipped with 512 MB of RAM (DDR3) and Micro-SD card socket for application storage up to 32GB, USB and Gigabit Ethernet for communication and HDMI or LCD touch screen interfaces for display. Such configuration allows booting up embedded Linux Operating System or another Real Time Operating System (RTOS) and developing embedded software early in a fully equipped hardware environment. The FPGA part of the Zynq-7000 module allows designing custom algorithm accelerators and coprocessors or integrate custom controllers for other on-board peripherals such as Accelerometer, CMOS Camera or broad range of of-the-shelf Digilent PMOD modules.

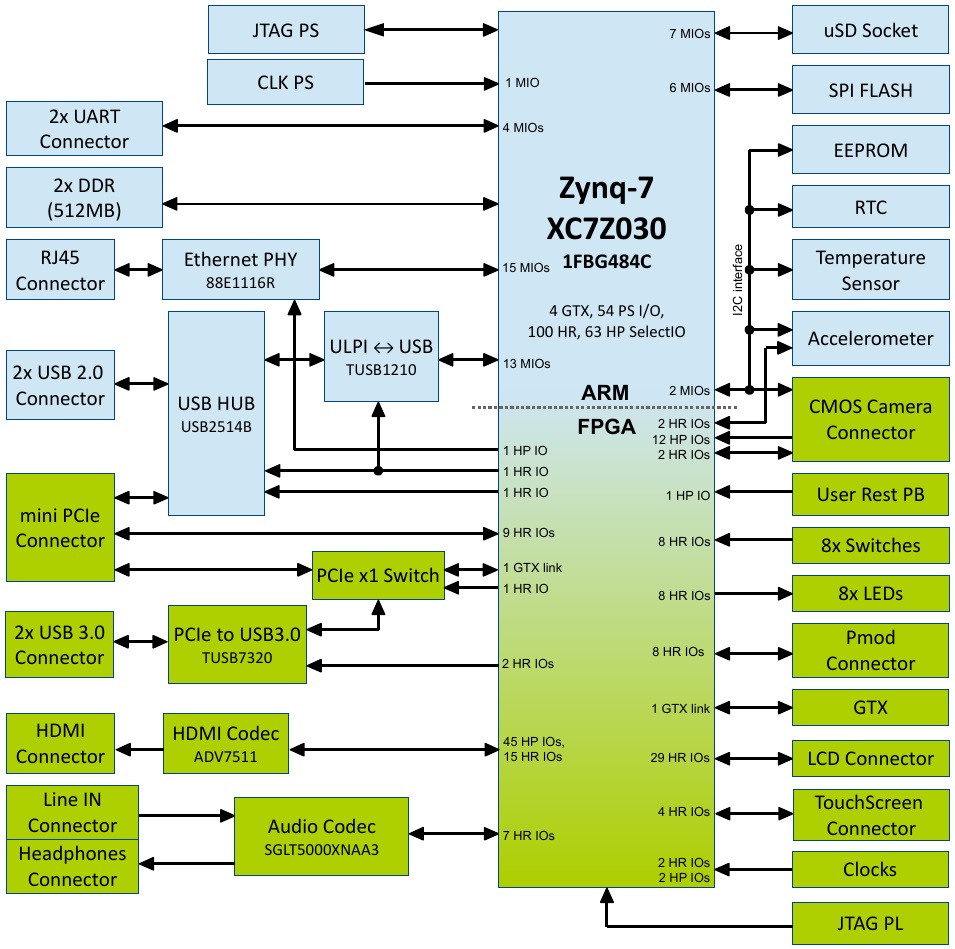

BLOCK DIAGRAM

TySOM-1-7Z030 Embedded Prototyping Board

Chipset / SoC

  • Xilinx Zynq-7000 XC7Z030
  • Dual ARM Cortex-A9 MPCore
  • XADC - 12-bit, 1MSPS Analog to Digital converter
  • FPGA: Kintex-7 architecture
    • 125K Logic Cells, 157K Flip-Flops, 9.3Mb RAM, 400 DSP

Memory

  • 512 MB RAM - DDR3
  • Micro-SD support up to 32GB
  • 128Mb SPI Flash Memory
  • 64 Kb EEPROM

Interfaces

  • Gigabit Ethernet PHY with RGMII interface (88E1116R) and RJ45 connector
  • 2x USB 2.0 ports with Hub controller (USB2514B) and Transceiver (TUSB1210)
  • PCI Express / USB 3.0 subsystem - configurable one of:
    • Mini PCI Express
    • 2x USB 3.0 xHCI Host Controller (TUSB7320) bridge to PCIe
  • 2x UART ports for Zynq PS (1.8V & 3.3V levels with TXB0108 level translator)
  • 2x JTAG Headers
    • 10-pin ARM JTAG for Zynq PS
    • Xilinx JTAG Connector for Zynq PL
  • Digilent PMOD Compatible Header

Multimedia

  • HDMI 1.4 Out - 225 MHz High Performance Transmitter (ADV7511)
  • LCD & touch panel connectors
  • MIPI CSI - CMOS Camera Connector
  • Audio Codec (SGTL5000) with speaker/line-in mini-jack connector and I2S interface

Miscellaneous

  • 8x User Dip Switches
  • 8x User LEDs
  • Reset Pushbuttons for PL & PS
  • RTC Module (Real Time Clock)
  • Accelerometer
  • Temperature Sensor
  • XADC Connector
  • High Speed Serial IO MMCX Connectors (1x GTX line)

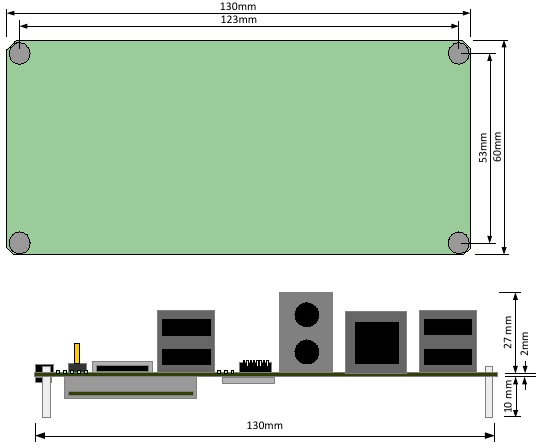

Dimensions
