HES-XCVU9P-ZU7EV

Capacity

The HES-XCVU9P-ZU7EV is designed for High-Performance Computing (HPC) applications which require immense digital signal processing. The board features a unique integration of a ZU7EV Zynq® UltraScale+™ MPSoC and a VU9P Virtex® UltraScale+™ FPGA. This heterogeneous computing platform leverages a Quad-core ARM® Cortex-A53, Dual-core ARM® Cortex-R5 real-time processing units, an ARM® Mali-400 MP2 GPU, integrated H.264/H.265 video codec, and UltraScale+™ programmable logic in a 16nm FinFET node.

Available onboard external memory resources include three (3) DDR4 SODIMM slots and two (2) modules of 576Mb RLDRAM-3 (1Gb total). On-chip memory for the Zynq® programmable logic includes 11Mb of Block RAM and 27Mb of UltraRAM. On-chip memory for the VU9P programmable logic includes 75.9Mb of Block RAM and 270Mb of UltraRAM.



Resources VU9P Virtex UltraScale+™ FPGA  ZU7EV Zynq UltraScale+™ MPSoC

Logic Cells/LUTs (K)

2586 504

Total Block RAM (Mb)

75.9 11

UltraRAM (Mb)

270 27

DSP Slices

6840 1728

Transceivers

76 GTY 32.75 Gb/s 20 GTH 16.3Gb/s

I/O

702 HP 214 PS, 312 HP, 48 HD



Clocking

Clocking is provided by oscillators, PLLs, and MMCX connectors. Dedicated oscillators are connected directly to the FPGA devices as well as onboard PLLs. The onboard PLLs provide any-frequency common clocks for both FPGA devices and dedicated any-frequency clocks to the VU9P to accommodate a variety of applications. Clocking can also be provided through the FMC+ connector through thirteen (13) differential clock inputs to the VU9P.



Hosting & Interfaces

The board is connected to a workstation or server through the board’s PCIe x16 edge connector. A wide variety of interfaces are available to be connected to the FPGA devices.



Interfaces
VU9P Virtex® UltraScale+™ FPGA ZU7EV Zynq® UltraScale+™ MPSoC
(connected to the ARM® processing system)
  • PCIe 3.0 x8/x16
  • FMC+ (68 DIFF / 142 SE, 16 GTY)
  • 2x QSFP28
  • 2x Samtec Firefly
  • 10x SATA
  • HDMI 2.0 Sink
  • HDMI 2.0 Source
  • USB 3.0
  • UART
  • PCIe 3.0 x8
  • SATA
  • DisplayPort
  • UART
  • 2x MicroSD
  • 1Gb Ethernet
  • USB 3.0

Aldec provides the Hes.Asic.Proto software package with necessary drivers and utilities for programming and communication with the board. For quick bring-up of host connection, Aldec provides ready to use image of the embedded Linux for ZU7EV device and HES Proto-AXI solution, which consists of a bridge module IP with AMBA AXI interface and accompanying PCI Express HES driver with C++ API for Linux and Windows PC allowing to transfer data directly to the AMBA AXI local bus behind the bridge. Power is supplied by a standard 6-pin PCIe power cable.

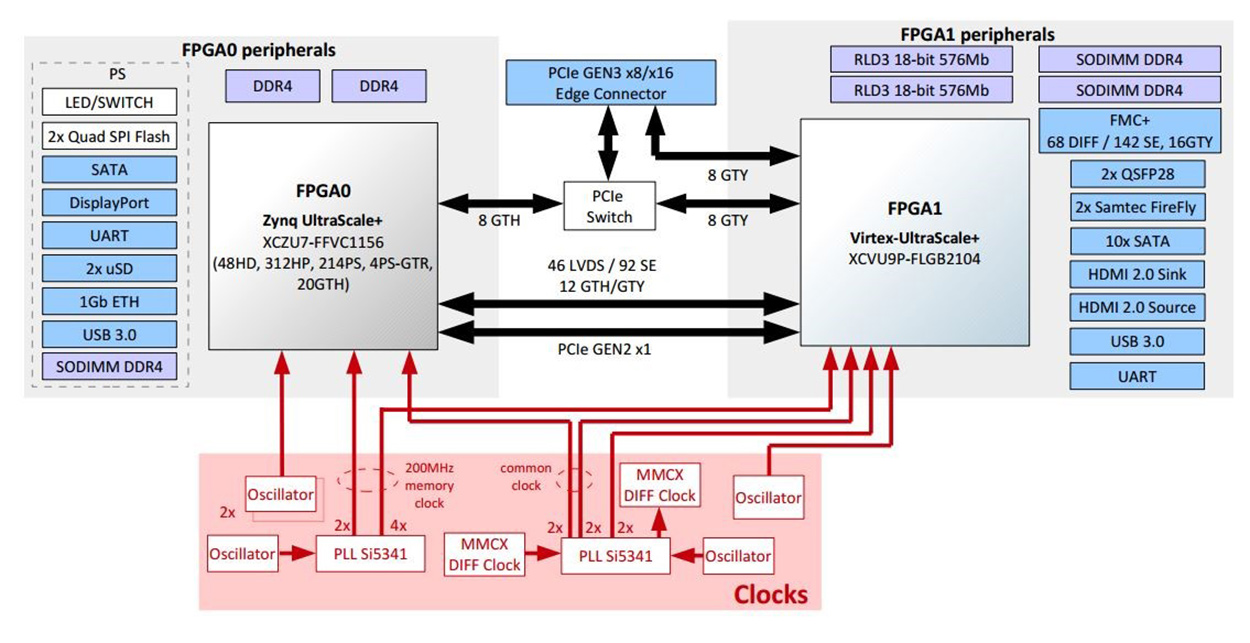

fpga boards, fpga board, fpga development boardBLOCK DIAGRAM

HES-XCVU9P-ZU7EV

FPGA & Capacity

  • Main FPGA: Virtex UltraScale+ XCVU9P-FLGB2104 (I/O: 702 HP, 76 GTY)
  • Host FPGA: Zynq UltraScale+ XCZU7EV-FFVC1156 (I/O: 214 PS, 48 HD, 312 HP, 20 GTH)

Flexible Clocking

  • Two (2) dedicated any-frequency clocks to VU9P
  • Two (2) common any-frequency clocks to VU9P and ZU7EV
  • Dedicated oscillators for VU9P and ZU7EV
  • Thirteen (13) differential clock inputs from FMC+ to VU9P

Memory Resources

  • Memories connected to the VU9P
    • 2x 18-bit 576 Mb RLDRAM-3 modules (1Gb total)
    • 2x SODIMM DDR4 slots
  • Memories connected to the ZU7EV
    • 2x 4Gb DDR4 modules (8Gb total)
    • 1x SODIMM DDR4 slot
    • 2x 512Mb Quad SPI Flash (1Gb total)

Interfaces & Hosting

  • Host interfaces connected to ZU7EV
    • PCIe 3.0 x8
    • SATA
    • DisplayPort
    • UART
    • 2x MicroSD
    • 1Gb Ethernet
    • USB 3.0
  • Host interfaces connected to VU9P
    • PCIe 3.0 x8/x16
    • FMC+ (68 DIFF / 142 SE, 16 GTY)
    • 2x QSFP28
    • 2x Samtec Firefly
    • 10x SATA (8x HOST and 2x DEVICE)
    • HDMI 2.0 Sink
    • HDMI 2.0 Source
    • USB 3.0
    • UART
  • Hosting

Miscellaneous

  • USB 3.0, uSD card socket and QSPI Flash memory for configuration
  • 2x 4Gb DDR4 and DDR4 SO-DIMM socket for control FPGA
  • DisplayPort connected to control FPGA
  • SATA connected to control FPGA
  • 1Gb Ethernet connected to control FPGA
  • UART interface connected to control FPGA
  • Power supply voltages supervisor

Software Support

  • Full integration with Aldec HES/DVM
  • Full support for Xilinx Chipscope debug and embedded logic analyzers via JTAG
