FMC-NET Networking Daughter Card

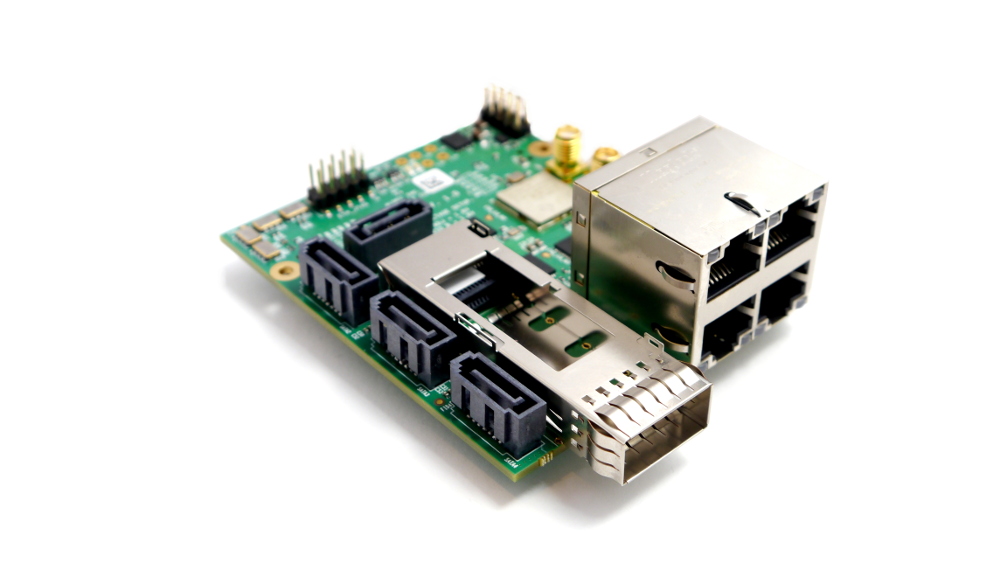

FMC-NET card was designed to enable prototyping and evaluation of various networking designs by providing commonly used peripherals like Gigabit Ethernet, wireless WiFi/Bluetooth, optical fiber QSFP+ and others. Four independent Gigabit ethernet PHY modules enable prototyping of the designs requiring multiple network ports such as switches and routers. Additionally the Ethernet PHY which is DP83867CR part from Texas Instruments supports the IEEE 1588 SOF time synchronization protocol needed in the industrial applications. Availability of QSFP+ and dual-band WiFi/Bluetooth module facilitates verification of complex and contemporary projects featuring optical fiber or wireless communication. There are also 4x SATA connectors that can be used to connect storage or other SATA compliant devices or for debugging purposes.

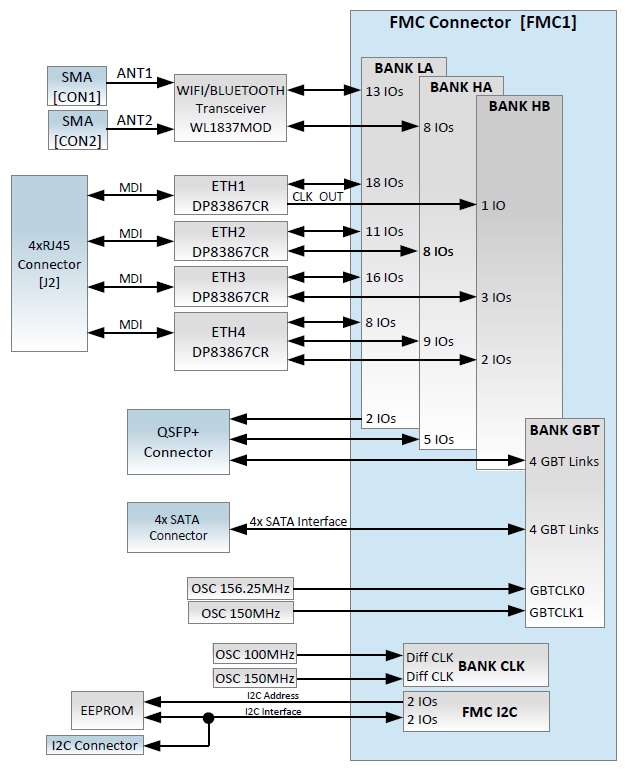

BLOCK DIAGRAM

FMC-NET Networking Daughter Card

Components & Interfaces

  • 4x Ethernet PHY 10/100/1000 with IEEE 1588 SOF (DP83867CR) with RGMII support - industrial grade
  • WiFi dual band & Bluetooth WiLink-8 module (WL1837MOD) - industrial grade
  • 1x QSFP+ 4 lanes up to 40Gb/s
  • 4x SATA device ports

Memory

  • 64 kB EEPROM (to accomplish ANSI/VITA 57.1 FMC standard)

Clocking

  • 2x Oscillators (100MHz, 150MHz)
  • 2x Oscillators (156.25MHz, 150MHz) for QSFP+ and SATA Interfaces

Connectivity

  • Main board connector:
    • FPGA Mezzanine Card connector compliant with ANSI/VITA 57.1 FMC Standard
  • Quad RJ45 Ethernet connector
  • QSFP+ MOLEX connector 75586-0010 and shield
  • SATA standard connector, MOLEX 67800-5005
  • SMA connectors to connect antennas for wireless interfaces
  • JTAG connector for Ethernet PHYs
