DO-254 FPGA Level In-Target Testing.

DO-254 FPGA Level In-Target Testing

DO-254/CTS™ is a certifiable at-speed FPGA level in-target testing system for Levels A and B DO-254 designs. It enables reuse of the simulation testbench as test vectors for in-target testing to ensure that the device performs as to what the RTL implementation intended. DO-254/CTS consists of a fully customized hardware and software package designed to replay RTL simulation during in-hardware verification by reusing the simulation testbenches as test vectors. It provides a single and automated environment to test all FPGA level requirements with full visibility and controllability at the FPGA pin level.


Top Features

  • At-speed testing in target device
  • Reuse testbench as test vectors
  • Increase verification coverage by test
  • FPGA I/Os full visibility/controllability
  • Early access to FPGA hardware board for device testing
  • For use with Altera®, Lattice®, Mircrosemi® and Xilinx® devices
  • Supports FPGAs with serial high speed I/Os (ARINC 818, PCIe, DDR3 and LVDS)
  • Single environment to verify all FPGA level requirements
  • Automated in-hardware testing
  • Hardware testing results visualization with waveform viewer
  • Integration with 3rd Party RTL Simulator, Synthesis and P&R Tools



CTS Flow

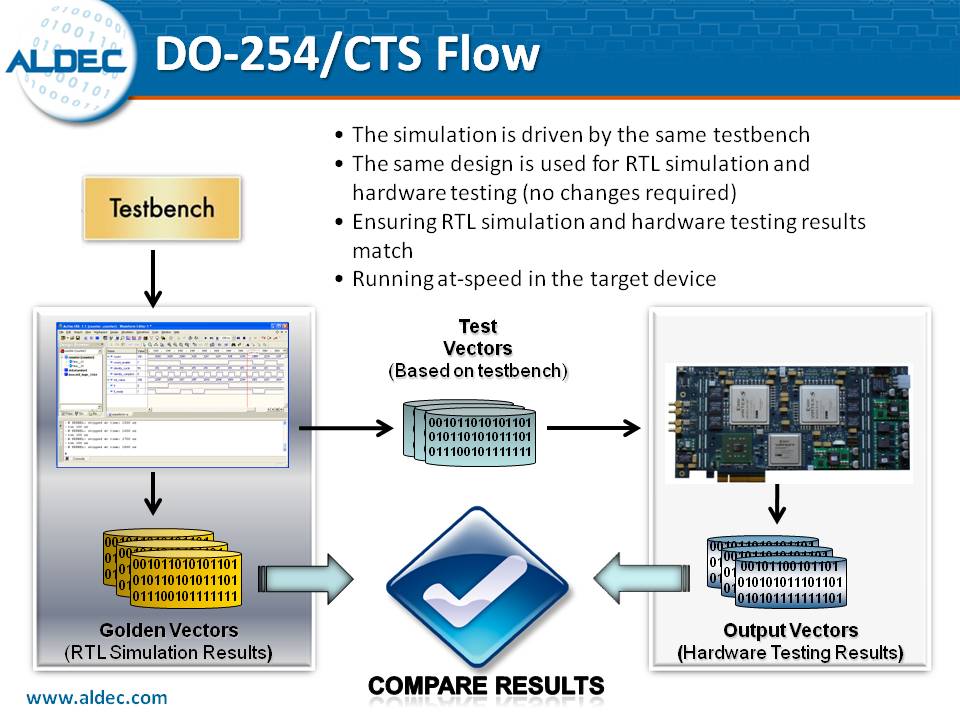

DO-254/CTS Flow

Mother Board
DO-254/CTS Mother Board


Daughter Board
DO-254/CTS Daughter Board
